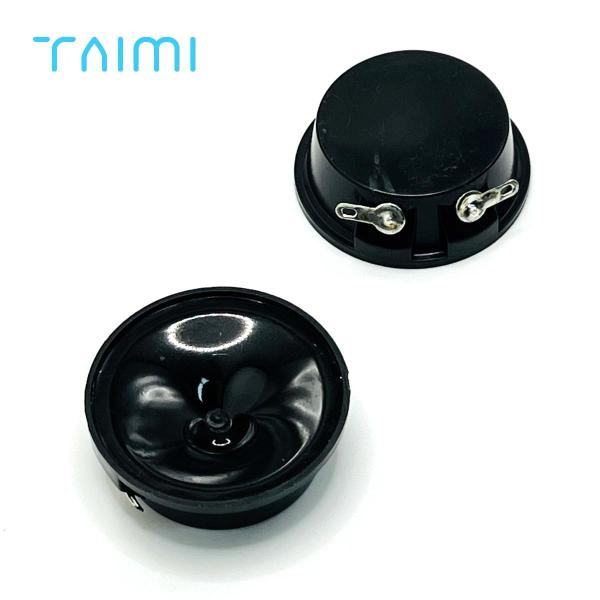

Piezoelectric Ultrasonic Transducer Speaker 25khz

Name: Piezoelectric Ultrasonic Transducer Speaker 25khz
Brand: TAIMI
Price: 1 USD

Wholesale Piezoelectric Ultrasonic Transducer Speaker 25khz from china suppliers

Brand Name : TAIMI

Model Number : TM-3825 Ultrasonic Horn Transducer Speaker

Certification : ISO9001、ISO14001、IATF16949

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Material : ABS

Operating voltage : 3-24V Piezoelectric ultrasonic horn

Rated Voltage (Vrms) : 2.83VDC

Function : mouse repellent insect Ultrasonic Horn Transducer Speaker

Min Sound Output : 95dB 12VDC/30cm

Warrenty : 5 years

Operating temperature : -20℃ to 70℃

Type : ultrasoinc speaker 25KHZ

Sound Output at 10cm (dB) : ≥100

Weight : 6 g

Resonant Frequency : 20±5 khz

Size / Dimension : 38*12mm

Efficiency - Type : Sound Pressure Level (SPL)

Temp. range : -20℃~60℃

Capacitance 120Hz (PF) : 20000±500

Operating Voltage (Vrms) : 30 max

Contact Now

Piezoelectric ultrasonic horn transducer speaker 3825 household electronic mouse repellent insect speaker 25khz

Description

38MM 25KHZ Ultrasonic Horn Transducer Speaker Specification:

1	Model No.	TM-3825 ultrasonic speaker
2	Rated Voltage (Vp-p)	5.5V
3	Operating Voltage (Vp-p)	30V
4	*Resonant Frequency (Hz)	25±5KHz
5	Rated Frequency Range	2.5-50KHz
	Capacitance at 100Hz	40,000pF±30%
6	*Sound Output at 50cm (dB)	≥90dB/50cm/5.5V
	paper cone	paper cone
7	Operating Temperature (℃)	-20~+70
8	Storage Temperature (℃)	-30~+80

Piezoelectric Ultrasonic Transducer Speaker 25khz

Ultrasonic Test Circuit

Piezoelectric Ultrasonic Transducer Speaker 25khz

Application:

Piezoelectric Ultrasonic Transducer Speaker 25khz
